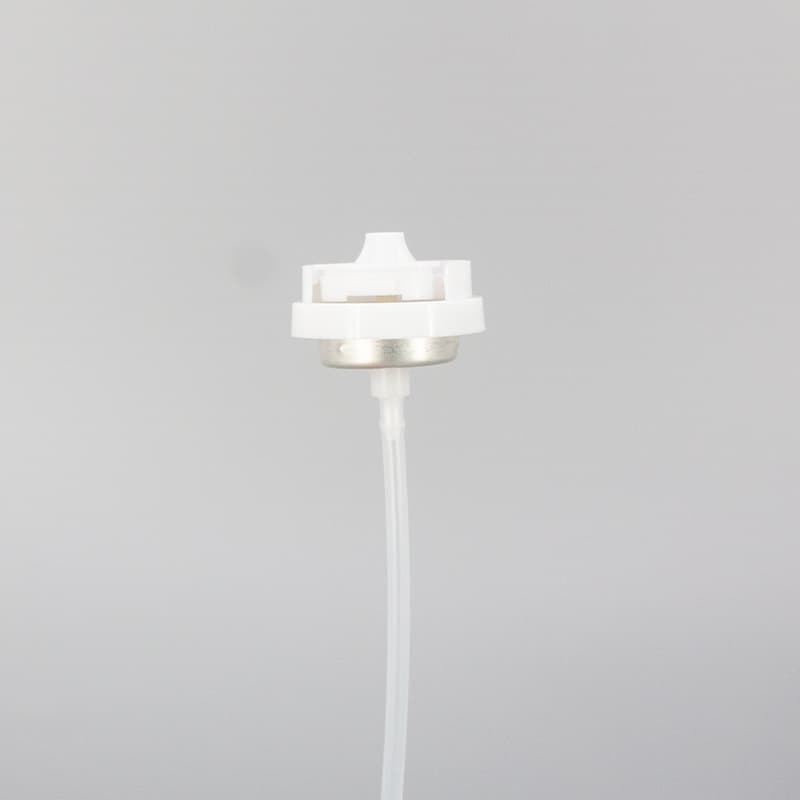

Factory wholesale OEM 1 inch Aerosol valve and actuator

Multipurpose aerosol valve for spray, suitable for 1 inch opening aerosol cans

Item No :
1 inch Aerosol valve and actuator
Order(MOQ) :
30000
Product Origin :
China
Shipping Port :
GuangZhou/Shengzhen
Lead Time :
15-20days

Inquire Now

Product Details

Precision Dispensing System

1-Inch Aerosol Valves & Actuators
Optimized for Spray Paint & Coatings

Name: Factory wholesale OEM 1 inch Aerosol valve and actuator
Availability: InStock

Engineered for consistent atomization and aggressive solvent resistance. Our 1-inch male and female aerosol valves are designed specifically for the complex rheology of spray paints, ensuring a uniform spray pattern without sputtering or clogging. Compatible with both LPG and DME propellant series.

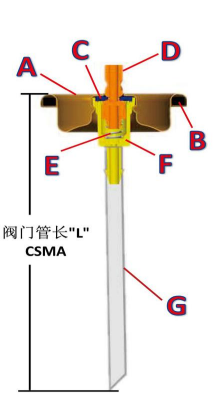

Anatomy of the Valve

1 inch aerosol valve cross-section diagram

Component Materials

A. Mounting Cup: Plain Tinplate / Clear or Gold-Lacquered Tinplate / Lacquered Aluminum

B. Outer Gasket: Buna (Solvent Resistant)

C. Inner Gasket: Buna / Neoprene / Butyl / Viton (For harsh chemicals)

D. Valve Stem: High-Strength Nylon

E. Spring: Anti-corrosive Stainless Steel

F. Housing / Diptube: Nylon (Housing) / Polyethylene (Diptube)

Stem Orifice Specifications

Stem Code	Orifice Size (mm)
1-A1	1 X 0.46mm
1-A2	2 X 0.51mm
1-A3	3 X 1.27mm
1-A4	4 X 0.61mm
1-A5	1 X 0.33mm
1-A6	1 X 0.51mm
1-A7	1 X 0.41mm
1-A8	2 X 0.61mm
1-A9	1 X 0.61mm

Housing / VPH Configurations

Code	RTP (Restrictor Tail Piece)	VPH (Vapor Phase Hole)
1-D0	2.0mm (0.078")	0.64mm (0.025")
1-D1	Four-slot valve chamber	-
1-D2	2.0mm (0.078")	NO
1-D3	2.0mm (0.078")	0.33mm (0.013")
1-D4	1.27mm (0.050")	0.64mm (0.025")
1-D5	1.27mm (0.050")	0.33mm (0.013")
1-D6	2.0mm (0.078")	0.46mm (0.018")
1-D7	1.27mm (0.050")	0.46mm (0.018")
1-D8	0.64mm (0.025")	0.64mm (0.025")
1-D9	2.0mm (0.078")	0.51mm (0.020")
1-Da	0.51mm (0.020")	0.51mm (0.020")
1-Db	1.0mm (0.039")	0.33mm (0.013")
1-Dc / 1-Dd	1.0mm / 1.27mm	NO
1-Df / 1-Dg	1.27mm / 2.0mm	0.51mm / 1.0mm
1-Dh / 1-Di	0.64mm / 2.0mm	0.46mm / 0.76mm
1-Dj / 1-Dk	1.27mm / 0.64mm	0.76mm / 1.0mm

Comprehensive 1-Inch Valve & Actuator Solutions

We provide a complete series of customized services. Select from various nozzle types, spray patterns, and actuation styles to match your formula's viscosity.

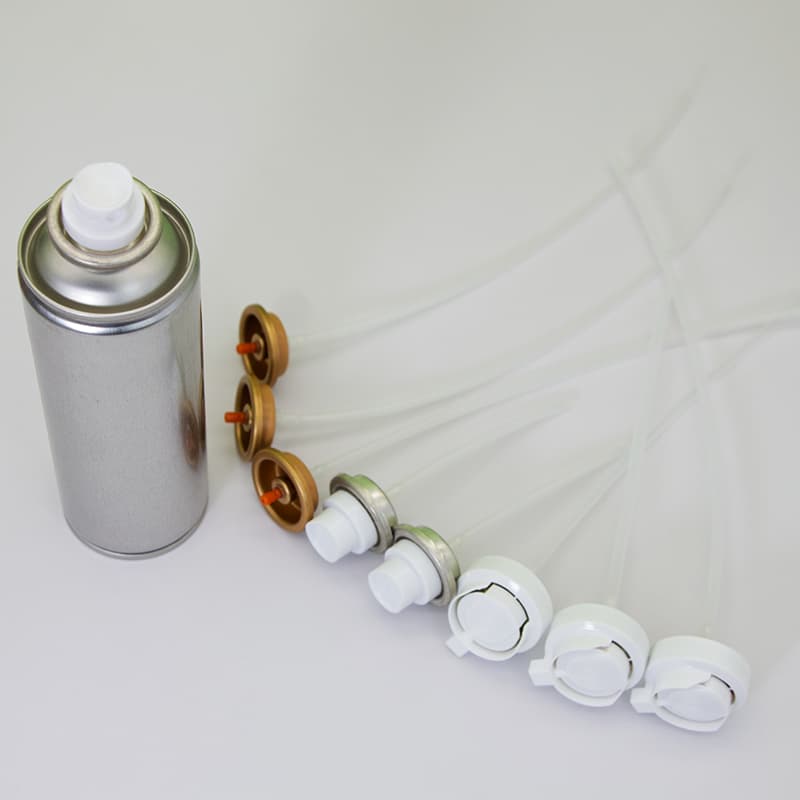

Diverse spray can valves and actuators collection

Why Source Your Valves from Us?

Solvent Compatibility (Viton/Butyl)

Spray paints contain aggressive solvents. Our selection of Viton, Butyl, and Neoprene inner gaskets ensures the valve mechanism will not swell, degrade, or leak over time.

Anti-Clogging Engineering

Utilizing four-slot valve chambers and precise orifice dimensions (0.33mm to 1.27mm), our stems are engineered to handle high-solid content paints without clogging.

Controlled Flow Rates

Whether you need a fine mist for clear coats or a high-volume output for thick industrial primers, our VPH and RTP combinations allow for exact discharge rate tuning.
